Medical wheel caster; medical double wheel caster; medical mute bread wheel; medical wheel with screw; medical wheel swivel

Medical wheel caster;

Medical double wheel caster;

Medical mute bread wheel;

Medical wheel with screw;

Medical wheel swivel


Product Detail

Product Tags

Product Description

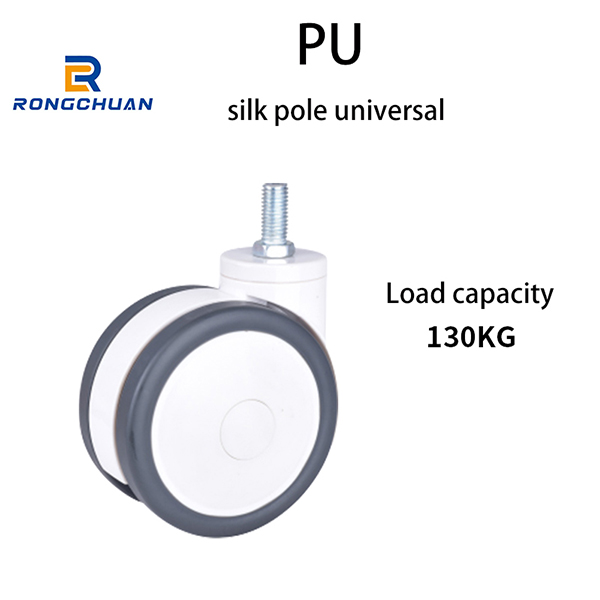

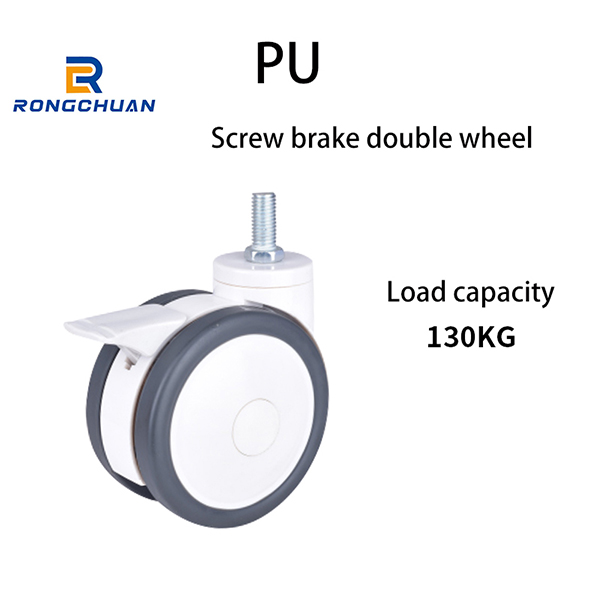

Medical wheel caster  has the characteristics of lightweight operation, flexible steering, high elasticity, special super silence, wear resistance, anti winding, ect.

TPR has the following advantages:

(1) It can be processed by general thermoplastic molding machines, such as injection molding, extrusion molding, blow molding, compression molding, and mold transfer molding;

(2) It can be vulcanized with rubber injection molding machine, and the time can be shortened from about 20min to less than 1min;

(3) It can be molded and vulcanized by a press, with fast pressing speed and short vulcanization time;

(4) The wastes generated in the production process (escaping burrs and extruding waste rubber) and the final waste products can be directly returned for reuse:

(5) The used TPR old products can be simply recycled and reused to reduce environmental pollution and expand the source of resource regeneration;

(6) No vulcanization is required to save energy. Take the energy consumption of high-pressure hose production as an example: 188MJ/kg for rubber and 144MJ/kg for TPR, which can save more than 25% of energy;

(7) The self reinforcement is great, and the formula is greatly simplified, so that the influence of the compounding agent on the polymer is greatly reduced, and the quality performance is easier to master;



PU has the following advantages:

(1)Strong wear resistance

(2)Soft and comfortable

(3)Good temperature resistance

(4)Easy to clean

Product specification

Hole Spacing 60*45mm/70*55mm/70*55mm
Plate Size 76*61mm/ 90*75mm/90*75mm
Load Height 102/94    125/122   155/145
Wheel dia 75mm/100mm/125mm
Wheel Width 56mm/56mm/80mm
Threaded Stem Size M12*25   M12*25  m16*25
Material TPR/ PU
Customized support OEM, ODM, OBM
Place of Origin ZHE CHINA
Color Grey

Common application

1.Hospital bed
2.Small equipment handling
3.Various light goods handling appliances

Customer questions & answers

1.Q:how long are the screws it comes with?

A:Generally M12*25

2.Q:Is it possible to order two that swivel and two that don't? swivel?

3.A:Yes, there are two types of caster,Swivel and Swivel with brake.

Q:Can these castors be used outdoors?

A:Yes, it is depends on your requirements for caster size and load capacity.

4.Q:What’s the wheel dia of the casters?

A:There are 3 to 5 inches
